Wednesday, 15 June 2016

The final version of our Cansat's structural design is 3D printed!

Due to several printing errors as well as we measuring inaccuracies it was quite a long procedure to print our final mounting representing our structural design that is composed of 6 layers including 7 several parts that are stabalized by rods. The satellite´s CFK cover is to be cut to size as our sensors are placed at the border of the can which ensures realistic data measurements.The final structure enables us to directly reach several components. This has a far-reaching importance concerning the battery as an energy supply as well as our triggering mechanism that needs to be inspected at every juncture.

satellite, CFK case and parachute

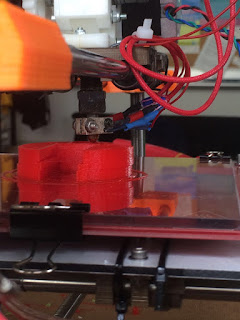

printing the final layer of our CanSat

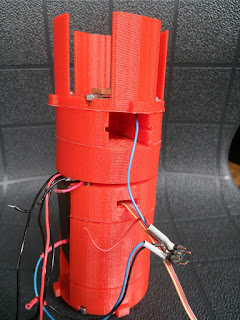

final structural design
